US Copper, a leading Copper Tube Manufacturer in India, provides high-quality Copper Tube for a various industries. With years of experience and a commitment to excellence, US Copper has established itself as a trusted manufacturer of Copper Tube for both commercial and industrial use.

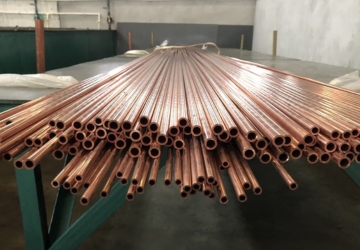

As a Copper Tube manufacturer in India, US Copper offers a wide range of Copper Tube to meet the specific needs of its customers. Our Copper Tube come in various sizes and shapes, like HVACR, Medical Gas Copper Tube, Copper Plumbing Tubes and more.
Copper Tube are a common used in plumbing and HVACR systems due to their high thermal conductivity, durability, and corrosion resistance. These Tube are made from high-quality Copper, which is an excellent conductor of heat and electricity, making it an ideal material for use in heating and cooling systems. Copper Tube come in a variety of sizes and shapes to fit different types of applications, including rigid Tube for above-ground use, flexible Tube for tight spaces, and large diameter Tube for commercial and industrial projects. With our comprehensive range of Copper products, we ensure that all your needs will be met with ease. We are also regarded Copper Pipe Manufacturer in India.
One of the key advantages of using Copper Tube is their durability and resistance to corrosion. Unlike other materials, Copper Tube do not rust or corrode over time, which makes them a long-lasting and reliable choice for plumbing and HVACR systems.
| Standard | ASTM B68 / ASTM B75 / ASTM B280 / ASTM B88 / JIS H 3300 / EN1057 or BS2871: PART 2:1972 / DIN 1754/8905/ IS2501 |
| Specification | ASTM B280, JIS H3300, AS/NZS1571.JIS3300-2006 |
| Material | TU2, C1020T, C10200, T2, C1100, TP1, C1201T, C1200, TP2, C1220T, C12200, C14200, C19400, etc |
| Outer Diameter(OD) | 4mm-150mm |
| Wall Thickness : | 0.25mm-8mm |
| Length | 1 meter-6 meter or as required |
| Cut Length | Single Random, Double Random & Cut Length |
| Types | Seamless Pipes, Tube / Inner Grooved Tubes / Square Pipes, Tube, Tube / Finned Tube |
| We can also cut, thread, and groove Copper Tubes to meet your specifications | |
| Copper Tube - Chemical composition | ||||||||||||
| Cu | Ni | Fe | Mn | P | C | Sn | Pb | Co | Zn | S | Autres | |
| CuNi10Fe1Mn | Reste | 9--11 | 1--2 | 0.5/1 | < 0.02 | < 0.05 | < 0.03 | < 0.02 | < 0.1 | < 0.5 | < 0.05 | < 0.2 |
| EN 12163 - CW352H | ||||||||||||
| Temper Designation | Form | Tensile Strength (min) | Vickers Hardness HV5 |
Elongation in 2 inches min % |
Average grain size in mm |
||
| Standard | Temper | ksi | MPa | HV5 | min % | in mm | |
| O60 | Soft Annealed | Coils | 30 | 205 | <60 | 40 | 0.040 |
| H02 | 1/2 Hard | Straight Lengths | 36 | 250 | 75-100 | 30 | N/A |
| H58 | Hard Drawn | Straight Lengths | 42 | 290 | >100 | N/A | N/A |
| Pipe / Tube Type | Nominal Pipe Size |
O.D. | I.D. | Wall Thickness | ||||||
| K | L | M | DWV | K | L | M | DWV | |||
| copper tubes to bs (british standard) 2871 | 1/4" | 3/8" | 0.305 | 0.315 | - | - | 0.035 | 0.030 | - | - |
| copper tubes to bs (british standard) 2871 | 3/8" | 1/2" | 0.402 | 0.430 | 0.450 | - | 0.049 | 0.035 | 0.025 | - |
| copper tubes to bs (british standard) 2871 | 1/2" | 5/8" | 0.527 | 0.545 | 0.569 | - | 0.049 | 0.040 | 0.028 | - |
| copper tubes to bs (british standard) 2871 | 5/8" | 3/4" | 0.652 | 0.666 | - | - | 0.049 | 0.042 | - | - |
| copper tubes to bs (british standard) 2871 | 3/4" | 7/8" | 0.745 | 0.785 | 0.811 | - | 0.065 | 0.045 | 0.032 | - |
| copper tubes to bs (british standard) 2871 | 1" | 1-1/8" | 0.995 | 1.025 | 1.055 | - | 0.065 | 0.050 | 0.035 | - |
| copper tubes to bs (british standard) 2871 | 1-1/4" | 1-3/8" | 1.245 | 1.265 | 1.291 | 1.295 | 0.065 | 0.055 | 0.042 | 0.040 |
| copper tubes to bs (british standard) 2871 | 1-1/2" | 1-5/8" | 1.481 | 1.505 | 1.527 | 1.541 | 0.072 | 0.060 | 0.049 | 0.042 |
| copper tubes to bs (british standard) 2871 | 2" | 2-1/8" | 1.959 | 1.985 | 2.009 | 2.041 | 0.083 | 0.070 | 0.058 | 0.042 |
| copper tubes to bs (british standard) 2871 | 2-1/2" | 2-5/8" | 2.435 | 2.465 | 2.495 | - | 0.095 | 0.080 | 0.065 | - |
| copper tubes to bs (british standard) 2871 | 3" | 3-1/8" | 2.907 | 2.945 | 2.981 | 3.030 | 0.109 | 0.090 | 0.072 | 0.045 |
